Distributed Control Terminal

MBI-8

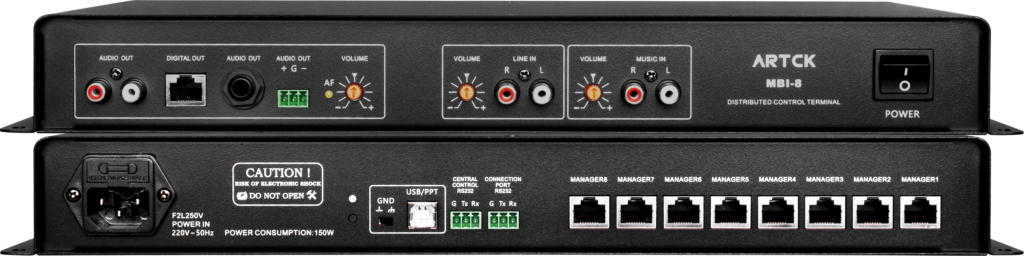

Name: MBI-8 Distributed Control Terminal
Brand: ARTCK Audio
SKU: MBI-8

Power, data relay and audio decoding for distributed ARTCK classroom systems.

Request product information Chinese source page →

Product Overview

Clear, dependable audio for professional spaces

Power, data relay and audio decoding for distributed ARTCK classroom systems.

Technical Information

Technical specifications

English specifications are provided for review. Missing or conflicting source values are marked in the table; confirm these with ARTCK before specifying the product.

English technical specifications
Functions	Power supply, data relay and audio decoding for intelligent microphone managers
Manager power supply	Source specifies up to 220 V ~ 50 Hz per channel; verify the connection requirements before installation
Data conversion	RS232 data-format conversion output and linked RS232 terminal interface
Wireless microphone audio outputs	Balanced signal output, RCA output and 6.35 mm output
Volume control	Wireless microphone volume adjustment
Presentation control	USB PPT page-control port
Manager connections	8 RJ45 connections for up to 8 distributed wireless or locking microphone managers
Cable distance	Up to 50 m between the manager/interface box and the downstream distributed digital amplifier input
Total connectors	9 RJ45 ports; 1 supply port marked 220 V ~ 50 Hz; 2 RS-232 data ports

View original Chinese specifications

技术参数：
话筒智能管家供电、数据中继、音频解码盒；
为每路话筒智能管家提供高达220V~50Hz的供电能力；
提供RS232数据格式转换输出；
提供一路联机RS232数据端子接口；
提供一组平衡信号输出无线话简声音；
提供一组RCA莲花接口输出无线话简声音；
提供一个6.35接口输出无线话简声音；
提供无线话简音量调节；
提供PPT翻页控制USB口；
提供8路RJ45网络接口，支持接入8个分布式无线话智能管家或分布式智能锁话管家；
通过一根网线连接话简智能管家，50米内稳定传输，不受机柜安装位置限制；
通过一根网线连接后端功放分布式数字输入网口，50米内稳定传输，不受机柜安装位置限制；
接口:
RJ45网口x9
220V~50Hz供电口x1
RS-232 数据口x2
