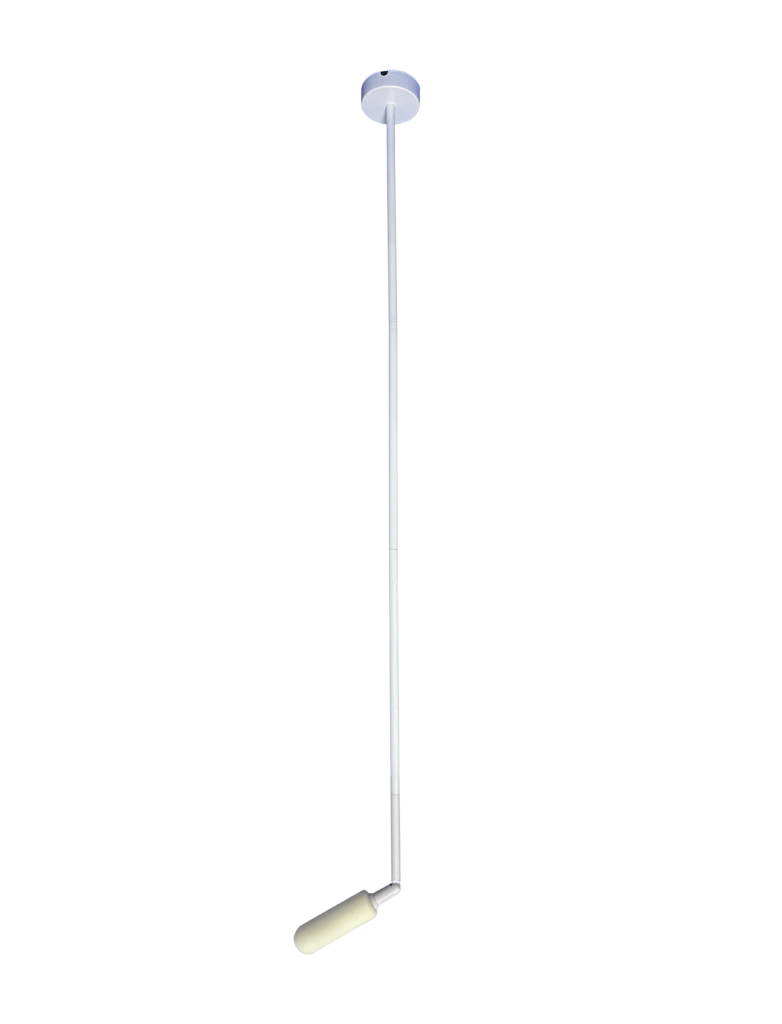

Integrated Ceiling Microphone
MC800
Ceiling-mounted condenser microphone designed for clear, reliable long-distance voice pickup in classrooms, meeting rooms and other professional audio environments.
Product Overview
Clear, dependable audio for professional spaces
Ceiling-mounted condenser microphone designed for clear, reliable long-distance voice pickup in classrooms, meeting rooms and other professional audio environments.
Technical Information
Technical specifications
| Microphone Type | Condenser Microphone |
|---|---|
| Application | Classrooms, meeting rooms, lecture halls and courtrooms |
| Installation | Ceiling-mounted with modular suspension rods |
| Polar Pattern | Cardioid |
| Pickup Angle | 135° |
| Pickup Distance | ≥2 m |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | -36 ± 3 dB (1 kHz, 1 Pa; 0 dB = 1 V/Pa) |
| Output Impedance | 200 Ω |
| Maximum SPL | 105 dB (1 kHz, THD < 1%) |
| Signal-to-Noise Ratio | ≥68 dB (A-weighted) |
| Audio Output | Balanced XLR |
| Power Supply | 48V Phantom Power |
| Net Weight | 103 g |
View original Chinese specifications
麦克风类型：电容式麦克风
适用场景：教室、会议室、报告厅、庭审室
安装方式：天花板吊装，采用模块化吊杆设计
指向性：心形指向
拾音角度：135°
拾音距离：≥2m
频率响应：20Hz–20kHz
灵敏度：-36±3dB（1kHz，1Pa；0dB=1V/Pa）
输出阻抗：200Ω
最大声压级：105dB（1kHz，THD＜1%）
信噪比：≥68dB（A计权）
音频输出：XLR平衡输出
供电方式：48V幻象供电
单体重量：103g
适用场景：教室、会议室、报告厅、庭审室
安装方式：天花板吊装，采用模块化吊杆设计
指向性：心形指向
拾音角度：135°
拾音距离：≥2m
频率响应：20Hz–20kHz
灵敏度：-36±3dB（1kHz，1Pa；0dB=1V/Pa）
输出阻抗：200Ω
最大声压级：105dB（1kHz，THD＜1%）
信噪比：≥68dB（A计权）
音频输出：XLR平衡输出
供电方式：48V幻象供电
单体重量：103g
Related Products
Explore compatible ARTCK products
Project Support
Need help specifying MC800?
Tell us about your room, users and system requirements. ARTCK will help you select a compatible solution.
